SNACK WAFERS POUCH FILLING SEALING MACHINE SNACK BISCUITS PREMADE POUCH PACKING MACHINE
|Packing speed||6-45 Bags/min|
|Bag size||L120-400mm W150-300mm|

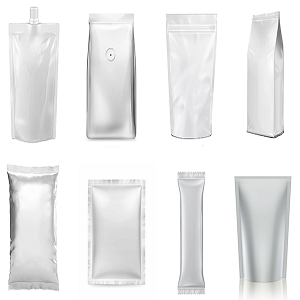

|Packing formart||Bags (flat bag, stand bag, zipper bag, hand bag, M bag etc irregular bags)|
|Power type||1 PH 220V, 50Hz|
|Air consumption||5-7kg/cm² 500L/min|
|Packing material||Single layer PE, PE complex film etc|
It is suitable for automatic packaging of granular strip, sheet, block, ball shape, powder and other products. Such as snack, chips, popcorn, puffed food,dried fruits, cookies, biscuits, candies, nuts, rice,beans, grains, sugar, salt, pet food, pasta, sunflower seeds, gummy candies, lollipop, Sesame.
Main characteristics & Structure features
1. The machine with ten-station structure, running by PLC, big touch screen centralized control, easy operation;
2. Automatic fault tracking and detection device, to achieve no bag opening, no filling and no sealing;
3. Mechanical empty bag tracking and detection device, to achieve no bag opening, no filling and no sealing;
4. The main drive system adopts variable frequency speed control, full CAM drive, running smoothly, low failure rate;
5 The design of the whole machine conforms to GMP standard and has passed CE certification.
10 HEADS WEIGHER
1. One of the most economic&stable multi-head weigher in the world the best cost-effective
2. Stagger Dump avoid bigger items pile up
3. Individual feeder control
4. User friendly touch screen equipped with multiple language
5. Compatible with single packaging machine, rotary bagger, cup/bottle machine, tray sealer etc.
6. 99 preset program for multiple tasks.
|Item||Standard 10 multi head weigher|
|Power supply||220V , 50HZ, 1.5KW|
|Monitor||10.4 inches color touch screen|
The conveyer is applicable for vertical lifting of grain material in departments such as corn, food, fodder and chemical industry, etc. For the lifting machine,
the hopper is driven by the chains to lift. It’s used for vertical feeding of grain or small block material. It has advantages of large lifting quantity and highness.
|Bucket hopper||1.5 L|
|Bucket material||PP Food Gradewe have developed dozens of bucket molds ourselves|
|Bucket style||Slippy bucket|
|Framework material||Sprocket: Mild steel with chrome coatingAxis: Mild steel with nickel coating|
|Dimension||Machine height 3100*1300 mmStandard export case 1.9*1.3*0.95|
|Optional parts||Frequency converterSensorPan for leakage product|
|The material and brand of the internal parts of the machine can be specified , and it can be be selected according to the product and service environment of the machine|
The supporting platform is solid will not affect the measurement accuracy of the combination weigher.
In addition, the table board is to use the dimple plate, it is more secure, and it can avoid slipping.
The size of the supporting platform is according to the type of the machines.
The machine can send the packed finished bag to after-package detecting device or packing platform.
|Lifting capacity||1 cmb/hour|
